Home Power & Sail Vertical windlasses VWC 3500
VWRC6
Back to products
RC6

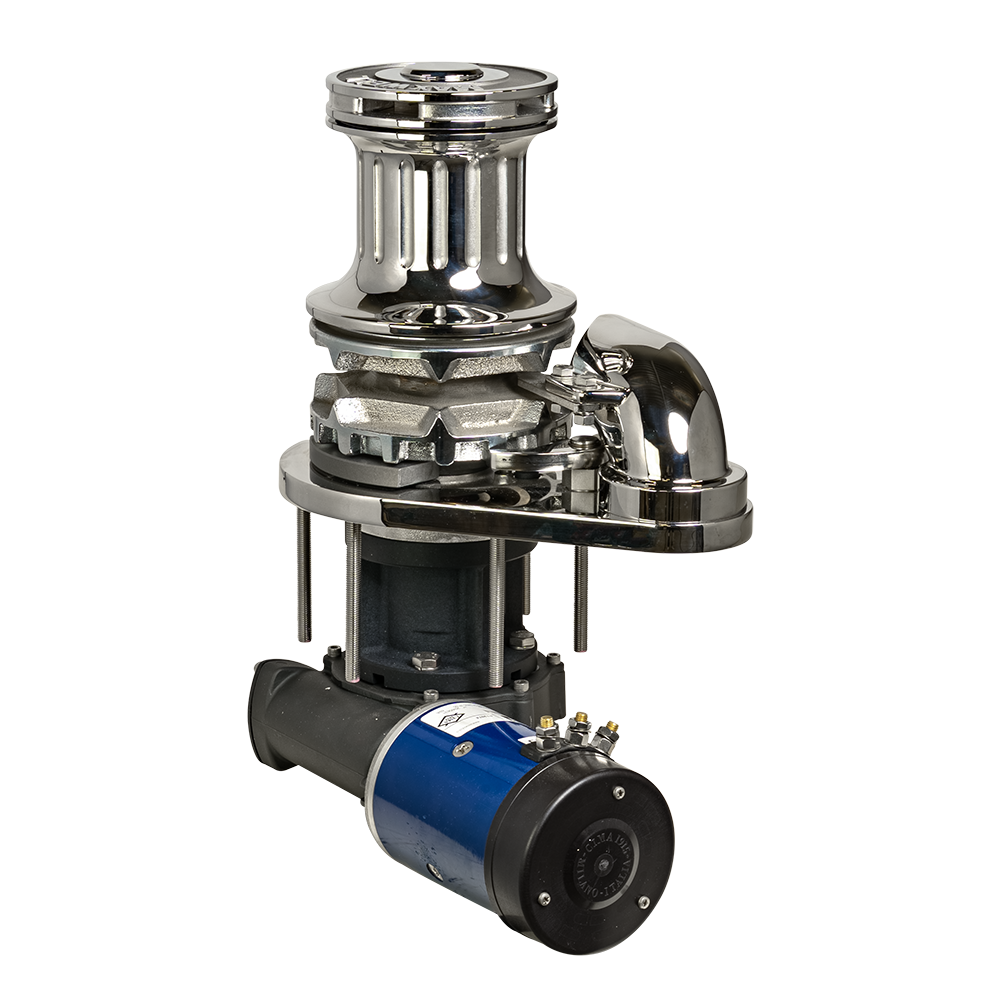

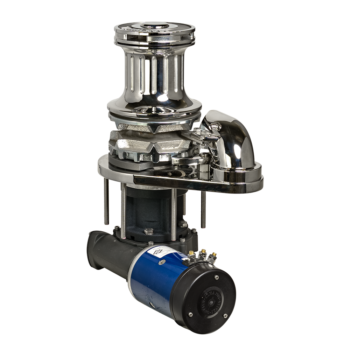

VWC 3500

12V 24V 48V HYD CAPSTAN ACW EDC

Description

The VWC 3500 series is designed for automatic handling of chain-only anchor rodes while offering an independent capstan for the retrieval of a secondary rope and/or chain rode, or to assist with docking procedures. The 3500 has been a pillar of the Maxwell P&S range since its introduction in 1987.

  • Permits use of traditional shackle and thimble rope and chain connection
  • High-quality finish on above deck components, manufactured from marine grade stainless steel (AISI 316) and chromed bronze, for long term durability
  • Cone type brake/clutch mechanism permits manual ‘Free Fall’ anchoring. Cone clutches, unlike dog clutches, provide smooth progressive engagement ensuring safe operator control
  • Simplified through deck installation by modular design
  • Heavy duty, dual direction Cima motor, designed for marine winches
  • Easily disassembled for servicing

Please see the “SPECIFICATIONS” and “RESOURCES” tab for further information.

Specifications

Specifications

Specifications
Model3500 Series
Maximum Pull1590 kg ( 3500 lbs )
Static Hold2200 kg ( 4840 lbs )
Chain size10-13 mm (3/8” – 1/2”)
Line Speed (Normal Working)15m/min (50ft/min)
Power Supply (DC)12V, 24V, 48V
Motor (Watt)1200 W
Net Weight (DC)48 kg (105 lbs)
Hydraulic Pressure138 bar (2000 psi)
Hydraulic Flow42 l/min (11 US gal/min)
Net Weight (Hydraulic)40 kg (88 lbs)
Resources

Resources

Owner’s Manual

CAD Files

CAD Files

3D CAD Files
